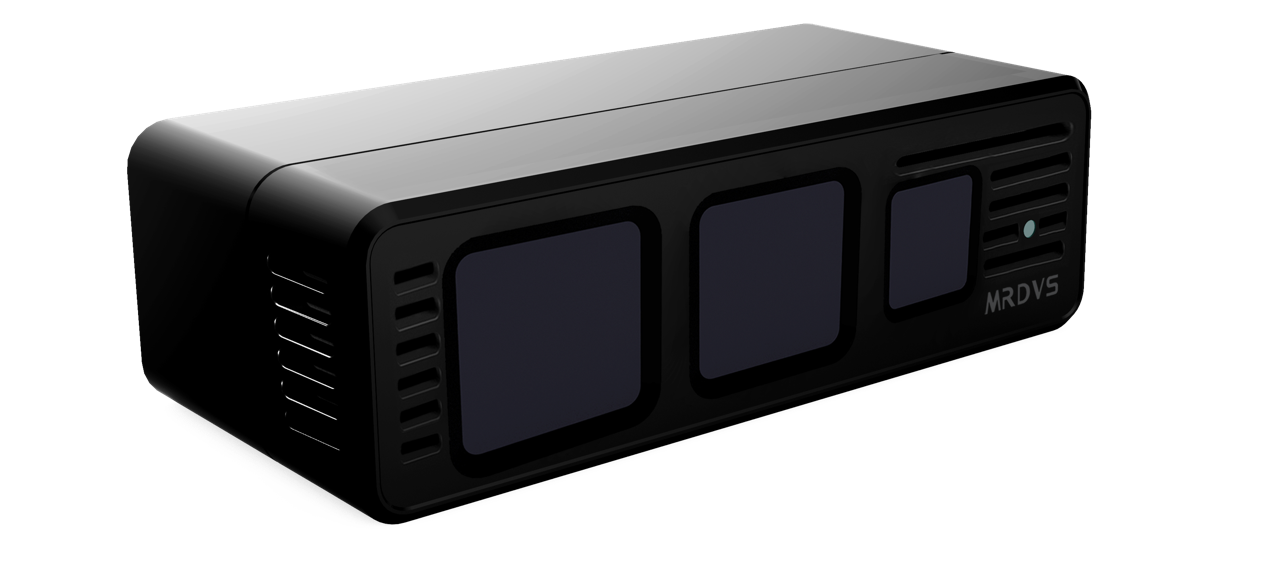

S10 dToF Obstacle Avoidance Camera
The MRDVS S10 is a high-performance industrial RGB-D camera designed to deliver accurate depth perception for mobile robots operating in complex environments. Powered by Direct Time of Flight (dToF) technology, the S10 provides distance measurements from 0.05 m to 8 m while maintaining low power consumption and a compact size.
With an onboard SoC, the S10 outputs real-time depth maps, RGB images, intensity maps, point clouds, and built-in obstacle avoidance results. This enables plug and play integration for navigation, safety, and autonomous mobility.
The camera offers resistance to strong outdoor lighting and maintains stable operation under sunlight levels up to 100 kLux. Its interface includes Ethernet connectivity and 2 IO inputs plus 2 IO outputs, allowing configuration of obstacle avoidance zones and the output of stop, deceleration, or safety signals.
The S10 is suitable for unmanned vehicles, service robots, AGVs, AMRs, drones, and intelligent machinery that need fast and reliable perception in both indoor and outdoor environments.
